Undermount Hoods
Undermount Hoods

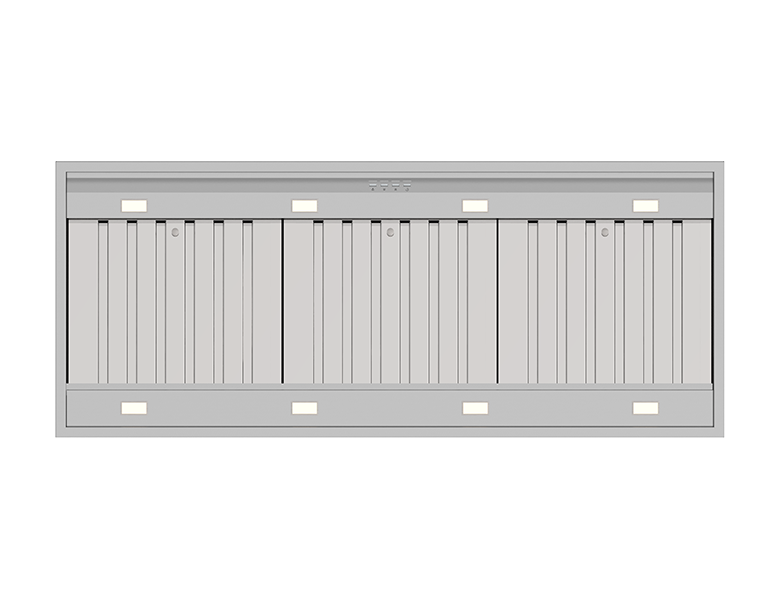

Washington 120 Undermount Alfresco
Price:
$3,032.00 – $4,384.00
Select Your Motor Solution
Washington 120 Undermount Alfresco
Price:
$3,032.00 – $4,384.00
Select Your Motor Solution
POWERFUL EXTRACTION
HIGH PERFORMANCE BAFFLE FILTERS
QUIET OPERATION
POWERFUL EXTRACTION
HIGH PERFORMANCE
BAFFLE FILTERS
QUIET OPERATION
Washington 120 Undermount Alfresco
Product Specifications
Additional information
| Hood Mounting | Built In (BBQ Under Mount) |
|---|---|
| Cooking Coverage | Suits 100cm – 120cm cooking surfaces |
| Filtration | Baffle Filters 3x (H-25) |
| Finish | AISI316 1.2mm High Grade Stainless Steel |
| Controls | LED Backlit 4 Button mastermind Electronic Control with LED Speed Indicator |
| Speed Settings | 3 Speed + Boost Mode |
| Timer Function | Programmable timer (10min Increments) + Auto Shut Off After 2Hrs Of Inactivity |
| Ducting (Remote) | 200mm Acoustic Flexi Ducting – Five (5) Metre Length Supplied |
| Hood Width | 1160mm |
| Hood Depth | 480mm |
| Hood Height | 330mm (plus 25mm Top Outlet) |
Sound Pressure Levels (Nominal)
Hood on Boost (Max) Speed Level
On Board Motor Solutions
Power 1,020 Motor
53.9dB(A)
Ultra 1,680 Motor
56.5dB(A)
Remote (External or Inline) Motor Solutions
Lite 800 Motor
39.3dB(A) / 52.7dB(A) (Indoor / Outdoor)
Pro 1140 Motor
49.6dB(A) / 58.5dB(A) (Indoor / Outdoor)
Pro Plus 2010 Motor
56.6dB(A) / 62.8dB(A) (Indoor / Outdoor)
Whispair Endurance Warranty
10-Year remote motor replacement warranty
Lifetime Replacement Electronic Parts Warranty
Product Variations
| SKU | Motor Type | Extraction | Duct Outlet | Price |
|---|---|---|---|---|
| X3W12S5.2IP | "Twin" Remote Motor – Inline | "Twin" Pro 1140m3/hr | Through Roof or Wall | $3,744.00 |
| X3W12S5.EPP | Remote Motor – External | Pro Plus 2010m3/hr | Through Roof or Wall | $3,032.00 |
| X3W12S5.2EP | "Twin" Remote Motor – External | "Twin" Pro 1140m3/hr | Through Roof or Wall | $3,744.00 |
| X3W12S5.2EPP | "Twin" Remote Motor – External | "Twin" Pro Plus 2010m3/hr | Through Roof or Wall | $4,384.00 |
Product Downloads
Hood: X3W12S
External Remote Motor
Inline Remote Motor
Remote Motor Systems
Onboard Motor Systems
Whispair 2019/20
Your Hood. Your Colour. Your Way.
Select Your Optional Finish
X1P3.BL $390
X1P3.WH $390
X1P3.CUS $790
Optional Accessories - To Suit Remote Motor Systems
Tile Roof Install Pack
X1IK.200TILE
To suit 200mm External Remote Motor
Tile Roof Install
Price $109
Metal Roof Install Pack
X1IK.200MET
To suit 200mm External Remote Motor
Metal Roof Install
Price $109
Wall Mounting Plate
X1IK.EWM
To suit 200mm External Remote Motor
Wall Mounted Install
Price $0
Optional Accessories - To Suit On Board Motor Systems
Tile Roof Ducting Kit
X1DK.150TILE
To suit On Board Power Motor
Tile Roof Install
Price $349
X1DK.200TILE
To suit On Board Ultra Motor
Tile Roof Install
Price $399
Metal Roof Ducting Kit
X1DK.150MET
To suit On Board Power Motor
Metal Roof Install
Price $349
X1DK.200MET
To suit On Board Ultra Motor
Metal Roof Install
Price $399
Wall / Eave Ducting Kit
X1DK.150WALL
To suit On Board Power Motor
Wall or Eave Install
Price $199
X1DK.200WALL
To suit On Board Ultra Motor
Wall or Eave Install
Price $249
