Monte Carlo 90 Undermount

Price:

$1,672.00$2,312.00

Select Your Motor Solution

  • Remote Motor - Inline
  • Remote Motor - External
  • On Board
  • Lite 800m3/hr
  • Pro 1140m3/hr
  • Pro Plus 2010m3/hr
  • Power 1020m3/hr
  • Ultra 1680m3/hr
  • Through Wall or Eave
  • Through Roof or Wall
  • Top Ducted
  • Rear Ducted
Clear

Monte Carlo 90 Undermount

Price:

$1,672.00$2,312.00

Select Your Motor Solution

  • Remote Motor - Inline
  • Remote Motor - External
  • On Board
  • Lite 800m3/hr
  • Pro 1140m3/hr
  • Pro Plus 2010m3/hr
  • Power 1020m3/hr
  • Ultra 1680m3/hr
  • Through Wall or Eave
  • Through Roof or Wall
  • Top Ducted
  • Rear Ducted
Clear

POWERFUL EXTRACTION

EASY TO CLEAN
HIGH PERFORMANCE BAFFLE FILTERS

QUIET OPERATION

POWERFUL EXTRACTION

EASY TO CLEAN
HIGH PERFORMANCE
BAFFLE FILTERS

QUIET OPERATION

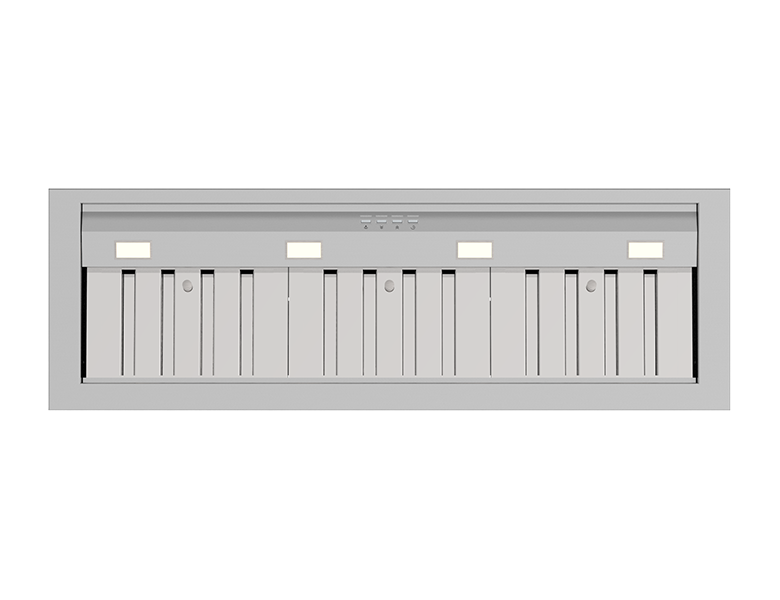

Monte Carlo 90 Undermount

Model Number – X3M09S
The Whispair Monte Carlo 90 undermount rangehood is ideal for cooking surface 75cm to 100cm in width. Designed to fit in an ‘Australian standard’ (900mm wide x 300mm Deep) overhead cupboard. Enjoying the Whispair Monte Carlo 90 undermount rangehood enables you to pursue your own individuality with the hood being integrated into your overhead kitchen cabinets all whilst delivering market-leading extraction performance and low operational noise levels.

Product Specifications

Additional information

Hood Mounting

Built In (Under Mount)

Cooking Coverage

Suits 70cm – 100cm cooking surfaces

Filtration

Baffle Filters 3x (H-25)

Finish

AISI304 1.2mm High Grade Stainless Steel

Controls

LED Backlit 4 Button mastermind Electronic Control with LED Speed Indicator

Speed Settings

3 Speed + Boost Mode

Timer Function

Programmable timer (10min Increments) + Auto Shut Off After 2Hrs Of Inactivity

Ducting (Remote)

200mm Acoustic Flexi Ducting – Five (5) Metre Length Supplied

Ducting (On Board)

Power Motor – Dia. 150mm (Recommended), Ultra Motor – Dia. 200mm (Recommended)

Hood Width

860mm

Hood Depth

280mm

Hood Height

330mm (plus 25mm Top Outlet)

Sound Pressure Levels (Nominal)

Hood on Boost (Max) Speed Level

On Board Motor Solutions

Power 1,020 Motor

53.9dB(A)

Ultra 1,680 Motor

56.5dB(A)

Remote (External or Inline) Motor Solutions

Lite 800 Motor

39.3dB(A) / 52.7dB(A) (Indoor / Outdoor)

Pro 1140 Motor

49.6dB(A) / 58.5dB(A) (Indoor / Outdoor)

Pro Plus 2010 Motor

56.6dB(A) / 62.8dB(A) (Indoor / Outdoor)

Whispair Endurance Warranty

5-Year comprehensive parts and labour warranty

10-Year remote motor replacement warranty

Lifetime Replacement Electronic Parts Warranty

Product Variations

SKUMotor TypeExtractionDuct OutletPrice
X3M09S5.ILRemote Motor – InlineLite 800m3/hrThrough Wall or Eave $1,832.00
X3M09S5.ELRemote Motor – ExternalLite 800m3/hrThrough Roof or Wall $1,832.00
X3M09S5.IPRemote Motor – InlinePro 1140m3/hrThrough Wall or Eave $1,992.00
X3M09S5.EPRemote Motor – ExternalPro 1140m3/hrThrough Roof or Wall $1,992.00
X3M09S5.EPPRemote Motor – ExternalPro Plus 2010m3/hrThrough Roof or Wall $2,312.00
X3M09S5.OP/TOn BoardPower 1020m3/hrTop Ducted $1,672.00
X3M09S5.OP/BOn BoardPower 1020m3/hrRear Ducted $1,672.00
X3M09S6.OU/TOn BoardUltra 1680m3/hrTop Ducted $2,232.00
X3M09S6.OU/BOn BoardUltra 1680m3/hrRear Ducted $2,312.00

Product Downloads

Specification Sheet

Hood: X3M09S

Specification Sheet

External Remote Motor

Specification Sheet

Inline Remote Motor

User Manual

Remote Motor Systems

User Manual

Onboard Motor Systems

Brochure

Whispair 2019/20

Your Hood. Your Colour. Your Way.

Select Your Optional Finish

Satin Black

X1P3.BL $390

Satin White

X1P3.WH $390

Custom Colour

X1P3.CUS $790

Optional Accessories - To Suit Remote Motor Systems

Tile Roof Install Pack

X1IK.200TILE
To suit 200mm External Remote Motor
Tile Roof Install
Price $109

Metal Roof Install Pack

X1IK.200MET
To suit 200mm External Remote Motor
Metal Roof Install
Price $109

Wall Mounting Plate

X1IK.EWM
To suit 200mm External Remote Motor
Wall Mounted Install
Price $0

Optional Accessories - To Suit On Board Motor Systems

Tile Roof Ducting Kit

X1DK.150TILE
To suit On Board Power Motor
Tile Roof Install
Price $349

X1DK.200TILE
To suit On Board Ultra Motor
Tile Roof Install
Price $399

Metal Roof Ducting Kit

X1DK.150MET
To suit On Board Power Motor
Metal Roof Install
Price $349

X1DK.200MET
To suit On Board Ultra Motor
Metal Roof Install
Price $399

Wall / Eave Ducting Kit

X1DK.150WALL
To suit On Board Power Motor
Wall or Eave Install
Price $199

X1DK.200WALL
To suit On Board Ultra Motor
Wall or Eave Install
Price $249

Monte Carlo 90 Undermount

Model Number – X3M09S
The Whispair Monte Carlo 90 undermount rangehood is ideal for cooking surface 75cm to 100cm in width. Designed to fit in an ‘Australian standard’ (900mm wide x 300mm Deep) overhead cupboard. Enjoying the Whispair Monte Carlo 90 undermount rangehood enables you to pursue your own individuality with the hood being integrated into your overhead kitchen cabinets all whilst delivering market-leading extraction performance and low operational noise levels.

Product Specifications

Additional information

Hood Mounting

Built In (Under Mount)

Cooking Coverage

Suits 70cm – 100cm cooking surfaces

Filtration

Baffle Filters 3x (H-25)

Finish

AISI304 1.2mm High Grade Stainless Steel

Controls

LED Backlit 4 Button mastermind Electronic Control with LED Speed Indicator

Speed Settings

3 Speed + Boost Mode

Timer Function

Programmable timer (10min Increments) + Auto Shut Off After 2Hrs Of Inactivity

Ducting (Remote)

200mm Acoustic Flexi Ducting – Five (5) Metre Length Supplied

Ducting (On Board)

Power Motor – Dia. 150mm (Recommended), Ultra Motor – Dia. 200mm (Recommended)

Hood Width

860mm

Hood Depth

280mm

Hood Height

330mm (plus 25mm Top Outlet)

Sound Pressure Levels (Nominal)

Hood on Boost (Max) Speed Level

On Board Motor Solutions

Power 1,020 Motor

53.9dB(A)

Ultra 1,680 Motor

56.5dB(A)

Remote (External or Inline) Motor Solutions

Lite 800 Motor

39.3dB(A) (Indoor) / 52.7dB(A) (Outdoor)

Pro 1,140 Motor

49.6dB(A) (Indoor) / 58.5dB(A) (Outdoor)

Pro Plus 2,010 Motor

56.6dB(A) (Indoor) / 62.8dB(A) (Outdoor)

Whispair Endurance Warranty

5-Year
comprehensive parts and labour warranty
10-Year
remote motor replacement warranty
Lifetime
Replacement Electronic Parts Warranty

Product Variations

SKUMotor TypeExtractionDuct OutletPrice
X3M09S5.ILRemote Motor – InlineLite 800m3/hrThrough Wall or Eave $1,832.00
X3M09S5.ELRemote Motor – ExternalLite 800m3/hrThrough Roof or Wall $1,832.00
X3M09S5.IPRemote Motor – InlinePro 1140m3/hrThrough Wall or Eave $1,992.00
X3M09S5.EPRemote Motor – ExternalPro 1140m3/hrThrough Roof or Wall $1,992.00
X3M09S5.EPPRemote Motor – ExternalPro Plus 2010m3/hrThrough Roof or Wall $2,312.00
X3M09S5.OP/TOn BoardPower 1020m3/hrTop Ducted $1,672.00
X3M09S5.OP/BOn BoardPower 1020m3/hrRear Ducted $1,672.00
X3M09S6.OU/TOn BoardUltra 1680m3/hrTop Ducted $2,232.00
X3M09S6.OU/BOn BoardUltra 1680m3/hrRear Ducted $2,312.00

Product Downloads

Specification Sheet

Hood: X3M09S

Specification Sheet

External Remote Motor

Specification Sheet

Inline Remote Motor

User Manual

Remote Motor Systems

User Manual

Onboard Motor Systems

Brochure

Whispair 2019/20

Your Hood. Your Colour. Your Way.

Select Your Optional Finish

Satin Black

X1P3.BL $390

Satin White

X1P3.WH $390

Custom Colour

X1P3.CUS $790

Optional Accessories - To Suit Remote Motor Systems

Tile Roof Install Pack

X1IK.200TILE
To suit 200mm External Remote Motor
Tile Roof Install
Price $109

Metal Roof Install Pack

X1IK.200MET
To suit 200mm External Remote Motor
Metal Roof Install
Price $109

Wall Mounting Plate

X1IK.EWM
To suit 200mm External Remote Motor
Wall Mounted Install
Price $0

Optional Accessories - To Suit On Board Motor Systems

Tile Roof Ducting Kit

X1DK.150TILE
To suit On Board Power Motor
Tile Roof Install
Price $349

X1DK.200TILE
To suit On Board Ultra Motor
Tile Roof Install
Price $399

Metal Roof Ducting Kit

X1DK.150MET
To suit On Board Power Motor
Metal Roof Install
Price $349

X1DK.200MET
To suit On Board Ultra Motor
Metal Roof Install
Price $399

Wall / Eave Ducting Kit

X1DK.150WALL
To suit On Board Power Motor
Wall or Eave Install
Price $199

X1DK.200WALL
To suit On Board Ultra Motor
Wall or Eave Install
Price $249
