Island Canopy Hoods

Island Canopy Hoods

Helsinki 120 Island Mounted

Price:

$5,992.00$6,312.00

Select Your Motor Solution

  • Remote Motor - Inline
  • Remote Motor - External
  • On Board
  • Pro 1140m3/hr
  • Pro Plus 2010m3/hr
  • Ultra 1680m3/hr
  • Through Wall or Eave
  • Through Roof or Wall
  • Top Ducted
Clear

Helsinki 120 Island Mounted

Price:

$5,992.00$6,312.00

Select Your Motor Solution

  • Remote Motor - Inline
  • Remote Motor - External
  • On Board
  • Pro 1140m3/hr
  • Pro Plus 2010m3/hr
  • Ultra 1680m3/hr
  • Through Wall or Eave
  • Through Roof or Wall
  • Top Ducted
Clear

POWERFUL EXTRACTION

EASY TO CLEAN
HIGH PERFORMANCE BAFFLE FILTERS

QUIET OPERATION

POWERFUL EXTRACTION

EASY TO CLEAN
HIGH PERFORMANCE
BAFFLE FILTERS

QUIET OPERATION

Helsinki 120 Island Mounted

Model Number – X7H12S
The Whispair Helsinki 120 island canopy rangehood is ideal for cooking surfaces 100cm to 130cm in width. Available in custom heights (800mm standard) and colours, the Whispair Zurich 120 island canopy rangehood is the ultimate interior design statement.

Product Specifications

Additional information

Hood Mounting

Island Hung (Canopy)

Cooking Coverage

Suits 100cm – 130cm cooking surfaces

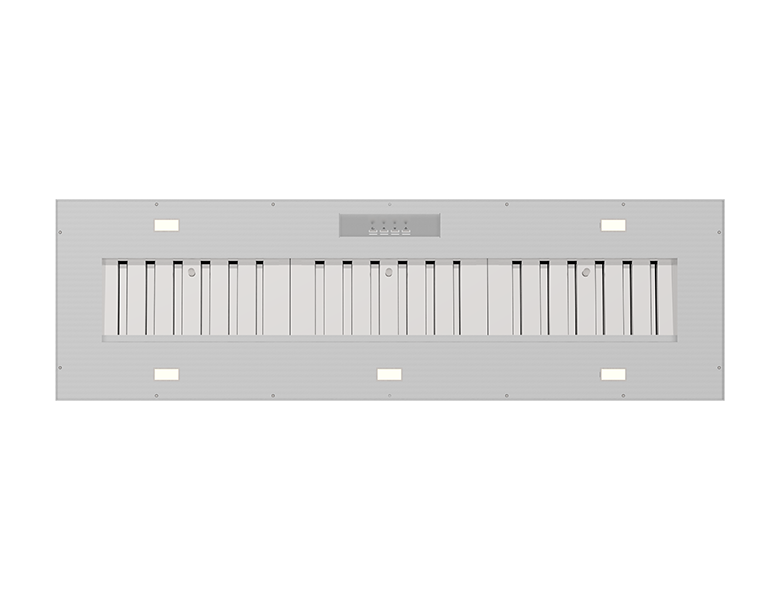

Filtration

Baffle Filters 4x (H-25)

Finish

AISI304 1.0mm High Grade Stainless Steel

Controls

LED Backlit 4 Button mastermind Touch Control with LED Speed Indicator

Speed Settings

3 Speed + Boost Mode

Timer Function

Programmable timer (10min Increments) + Auto Shut Off After 2Hrs Of Inactivity

Ducting (Remote)

200mm Acoustic Flexi Ducting – Five (5) Metre Length Supplied

Hood Width

1200mm

Hood Depth

360mm

Hood Height

800mm

Sound Pressure Levels (Nominal)

Hood on Boost (Max) Speed Level

On Board Motor Solutions

Power 1,020 Motor

53.9dB(A)

Ultra 1,680 Motor

56.5dB(A)

Remote (External or Inline) Motor Solutions

Lite 800 Motor

39.3dB(A) / 52.7dB(A) (Indoor / Outdoor)

Pro 1140 Motor

49.6dB(A) / 58.5dB(A) (Indoor / Outdoor)

Pro Plus 2010 Motor

56.6dB(A) / 62.8dB(A) (Indoor / Outdoor)

Whispair Endurance Warranty

5-Year comprehensive parts and labour warranty

10-Year remote motor replacement warranty

Lifetime Replacement Electronic Parts Warranty

Product Variations

SKUMotor TypeExtractionDuct OutletPrice
X7H12S5.IPRemote Motor – InlinePro 1140m3/hrThrough Wall or Eave $5,992.00
X7H12S5.EPRemote Motor – ExternalPro 1140m3/hrThrough Roof or Wall $5,992.00
X7H12S5.EPPRemote Motor – ExternalPro Plus 2010m3/hrThrough Roof or Wall $6,312.00
X7H12S6.OU/TOn BoardUltra 1680m3/hrTop Ducted $6,232.00

Product Downloads

Specification Sheet

Hood: X7H12S

Specification Sheet

External Remote Motor

Specification Sheet

Inline Remote Motor

User Manual

Remote Motor Systems

User Manual

Onboard Motor Systems

Brochure

Whispair

Your Hood. Your Colour. Your Way.

Select Your Optional Finish

Satin Black

X1P7.BL $690

Satin White

X1P7.WH $690

Custom Colour

X1P7.CUS $1,090

Optional Accessories - To Suit Remote Motor Systems

Tile Roof Install Pack

X1IK.200TILE
To suit 200mm External Remote Motor
Tile Roof Install
Price $109

Metal Roof Install Pack

X1IK.200MET
To suit 200mm External Remote Motor
Metal Roof Install
Price $109

Wall Mounting Plate

X1IK.EWM
To suit 200mm External Remote Motor
Wall Mounted Install
Price $0

Optional Accessories - To Suit On Board Motor Systems

Tile Roof Ducting Kit

X1DK.150TILE
To suit On Board Power Motor
Tile Roof Install
Price $349

X1DK.200TILE
To suit On Board Ultra Motor
Tile Roof Install
Price $399

Metal Roof Ducting Kit

X1DK.150MET
To suit On Board Power Motor
Metal Roof Install
Price $349

X1DK.200MET
To suit On Board Ultra Motor
Metal Roof Install
Price $399

Wall / Eave Ducting Kit

X1DK.150WALL
To suit On Board Power Motor
Wall or Eave Install
Price $199

X1DK.200WALL
To suit On Board Ultra Motor
Wall or Eave Install
Price $249

Helsinki 120 Island Mounted

Model Number – X7H12S
The Whispair Helsinki 120 island canopy rangehood is ideal for cooking surfaces 100cm to 130cm in width. Available in custom heights (800mm standard) and colours, the Whispair Zurich 120 island canopy rangehood is the ultimate interior design statement.

Product Specifications

Additional information

Hood Mounting

Island Hung (Canopy)

Cooking Coverage

Suits 100cm – 130cm cooking surfaces

Filtration

Baffle Filters 4x (H-25)

Finish

AISI304 1.0mm High Grade Stainless Steel

Controls

LED Backlit 4 Button mastermind Touch Control with LED Speed Indicator

Speed Settings

3 Speed + Boost Mode

Timer Function

Programmable timer (10min Increments) + Auto Shut Off After 2Hrs Of Inactivity

Ducting (Remote)

200mm Acoustic Flexi Ducting – Five (5) Metre Length Supplied

Hood Width

1200mm

Hood Depth

360mm

Hood Height

800mm

Sound Pressure Levels (Nominal)

Hood on Boost (Max) Speed Level

On Board Motor Solutions

Power 1,020 Motor

53.9dB(A)

Ultra 1,680 Motor

56.5dB(A)

Remote (External or Inline) Motor Solutions

Lite 800 Motor

39.3dB(A) (Indoor) / 52.7dB(A) (Outdoor)

Pro 1,140 Motor

49.6dB(A) (Indoor) / 58.5dB(A) (Outdoor)

Pro Plus 2,010 Motor

56.6dB(A) (Indoor) / 62.8dB(A) (Outdoor)

Whispair Endurance Warranty

5-Year
comprehensive parts and labour warranty
10-Year
remote motor replacement warranty
Lifetime
Replacement Electronic Parts Warranty

Product Variations

SKUMotor TypeExtractionDuct OutletPrice
X7H12S5.IPRemote Motor – InlinePro 1140m3/hrThrough Wall or Eave $5,992.00
X7H12S5.EPRemote Motor – ExternalPro 1140m3/hrThrough Roof or Wall $5,992.00
X7H12S5.EPPRemote Motor – ExternalPro Plus 2010m3/hrThrough Roof or Wall $6,312.00
X7H12S6.OU/TOn BoardUltra 1680m3/hrTop Ducted $6,232.00

Product Downloads

Specification Sheet

Hood: X7H12S

Specification Sheet

External Remote Motor

Specification Sheet

Inline Remote Motor

User Manual

Remote Motor Systems

User Manual

Onboard Motor Systems

Brochure

Whispair 2019/20

Your Hood. Your Colour. Your Way.

Select Your Optional Finish

Satin Black

X1P7.BL $690

Satin White

X1P7.WH $690

Custom Colour

X1P7.CUS $1,090

Optional Accessories - To Suit Remote Motor Systems

Tile Roof Install Pack

X1IK.200TILE
To suit 200mm External Remote Motor
Tile Roof Install
Price $109

Metal Roof Install Pack

X1IK.200MET
To suit 200mm External Remote Motor
Metal Roof Install
Price $109

Metal Roof Install Pack

X1IK.200MET
To suit 200mm External Remote Motor
Metal Roof Install
Price $99

Wall Mounting Plate

X1IK.EWM
To suit 200mm External Remote Motor
Wall Mounted Install
Price $0

Optional Accessories - To Suit On Board Motor Systems

Tile Roof Ducting Kit

X1DK.150TILE
To suit On Board Power Motor
Tile Roof Install
Price $349

X1DK.200TILE
To suit On Board Ultra Motor
Tile Roof Install
Price $399

Metal Roof Ducting Kit

X1DK.150MET
To suit On Board Power Motor
Metal Roof Install
Price $349

X1DK.200MET
To suit On Board Ultra Motor
Metal Roof Install
Price $399

Wall / Eave Ducting Kit

X1DK.150WALL
To suit On Board Power Motor
Wall or Eave Install
Price $199

X1DK.200WALL
To suit On Board Ultra Motor
Wall or Eave Install
Price $249

Add to cart
